parts 210 – Horse Power Ignition

Rotor

Name

Description

210R030

Wallaroo

A: 13.65mm

B: 18.45mm

C: 5.7°

D: -

E: -

F: -

210R031

Piaggio

A: 16.00mm

B: 17.00mm

C: 5.7°

D: -

E: -

F: -

210R034

Puch Maxi

A: 16.00mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: 10.70mm

210R035

NSR

A: 20.50mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: 15.00mm

210R036

Suzuki

A: 17.80mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: 12.40mm

210R037

RD250 AC

A: 18.85mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: 13.70mm

210R078

Aprilia RS

A: 20.75mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: 16.75mm

210R098

(no cone)

A: 11.00mm

B: 9.75mm

C: -

D: -

E: -

F: -

210R142

XR75

A: 16.90mm

B: 9.75mm

C: 5.7°

D: 8.00m

E: 17.10

F: 10.00mm

210R149

KS80

A: 16.85mm

B: 9.75mm

C: 4.0°

D: -

E: -

F: 13.10mm

210R170

Maico 3 welle

A: 20.70mm

B: 9.75mm

C: 4.0°

D: -

E: -

F: 16.6mm

210R218

Ciao

A: 16.20mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: -

210R234

MBK

A: 14.95mm

B: 9.75mm

C: 3.0°

D: -

E: -

F: 12.10mm

210R260

Minarelli v1

A: 14.45mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: -

210R275

Camino

A: 16.9mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: 11.3mm

210R276

Fox

A: 15.50mm

B: 12.75mm

C: 5.7°

D: -

E: -

F: -

210R277

FS1

A: 16.90mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: 10.00mm

210R278

Sachs

A: 17.15mm

B: 9.75mm

C: 4.0°

D: -

E: -

F: 13.20mm

210R279

CR250

A: 19.35mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: 14.00mm

210R281

Husqvarna 250

A: 18.80mm

B: 9.75mm

C: 4.0°

D: -

E: -

F: 15.00mm

210R283

KTM

A: 19.50mm

B: 9.75mm

C: 4.0°

D: -

E: -

F: 15.90mm

210R313

SM51

A: 17.80mm

B: 9.75mm

C: 3.0°

D: -

E: -

F: 15.30mm

210R317

Montesa

A: 21.85mm

B: 37.00mm

C: 3.0°

D: -

E: -

F: 17.80mm

210R323

Garelli

A: 12.75mm

B: 9.75mm

C: 4.0°

D: -

E: -

F: 8.00mm

210R345

Morini M1

A: 12.70mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: -

210R347

Garelli NOI

A: 13.10mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: 8.00mm

210R350

CZ360

A: 24.50mm

B: 24.75mm

C: -3.0

D: -

E: -

F: -

210R357

Husqvarna 430

A: 18.30mm

B: 9.75mm

C: 4.0°

D: -

E: -

F: 14.10mm

210R396

Pitbike

A: 20.20mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: 15.00mm

210R407

Flandria 127

A: 13.50mm

B: 11.00mm

C: 3.0°

D: -

E: -

F: -

210R411

No cone

A: 11.00mm

B: -

C: -

D: -

E: -

F: -

210R412

Husqvarna 390

A: 24.00mm

B: -

C: 4.0°

D: -

E: -

F: -

210R413

Ducati MK3

A: 25.00mm

B: 21.00mm

C: 5.5°

D: -

E: -

F: -

210R415

Rotax 244 (inversed cone)

A: 24.00mm

B: 25.00mm

C: -4.0

D: -

E: -

F: -

210R417

Aprilia

A: 21.50mm

B: 9.75mm

C: 4.0°

D: -

E: -

F: -

210R426

MF2/4

A: 13.40mm

B: 9.75mm

C: 3.0°

D: -

E: -

F: 10.50mm

210R443

5,7/21,60

A: 21.60mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: 16.25mm

210R461

No cone - threaded

A: 11.00mm

B: -

C: -

D: -

E: -

F: -

210R462

No cone - threaded - fan mount

A: 11.00mm

B: -

C: -

D: -

E: -

F: -

210R463

CZ - inversed cone

A: 16.00mm

B: -

C: -3.0

D: -

E: -

F: 20.00mm

210R468

Ciao

A: 16.20mm

B: 9.75mm

C: 5.7°

D: -

E: -

F: -

Stator

Name

Description

210S190B

180° | Ø90 | high (Black)

210S190G

180° | Ø90 | high (Gold)

210S190R

180° | Ø90 | high(Red)

210S194B

180° | Ø94 | high(Black)

210S194G

180° | Ø94 | high (Gold)

210S194R

180° | Ø94 | high(Red)

210S205B

180° | Ø94 | high | double coil(Black)

210S252B

180° | Ø90 |low (Black)

210S253B

180° | Ø94 |low (Black)

210S254B

180° | Ø108 |low (Black)

210S255

180° | Ø110 |low (Black)

210S263

180° | Vespa PX (Grey)

210S264

180° | Vespa PK (Grey)

210S271B

180° | Ø80 (Black)

210S272B

180° | Ø82 (Black)

210S273B

180° | Ciao (Black)

210S307B

180° | Ø110 |SEM (Black)

210S348

180° | CZ360 (Grey)

210S430B

180° | Ø94 |Ducati narrow case (Black)

210S431

180° | Ø106 |Ducati wide case (Grey)

210S440B

180° | Ø110 |SEM |double coil (Black)

210S441

180° | Honda CR (Red)

210S442

180° | Honda CR (Red)

210S460B

180° | Ø110 |KTM low double coil (Black)

210S464B

180° | Ø90 |upside down mount (Black)

CDI-units

Name

Description

210C041

Digital CDI - 4 stroke

210C042

Digital CDI - 2 stroke

210C130

Analogue CDI - Curve 130

210C160

Analogue CDI - Curve 130 - wire loom

Baseplate

Name

Description

210B001

PitBike

210B018

NSR

210B019

Minarelli

210B020

Wallaroo

210B022

Universal Ø110 multi

210B046

Universal Ø110

210B065

Universal Ø130 high

210B073

Universal Ø120

210B074

Morini 50 (Wallaroo + bus)

210B081

Universal Ø108

210B082

Piaggio 125

210B091

CR250R

210B103

Universal Ø130

210B120

KX125 (Ø115)

210B136

XL75

210B161

RD350 (Ø130)

210B169

Maico High

210B175

Camino

210B239

Morini 175

210B243

KTM 65SX

210B275

MBK

210B314

SM51

210B334

Minarelli Low

210B354

Piaggio 50

210B358

Husqvarna

210B404

Yamahopper B090 to Ø41

210B409

Maico Low

210B418

XS250

210B420

TRX250

210B423

Yamaha 490

210B433

Piaggio 125 Low

210B447

210B465

CZ twin pipe

Other parts

Name

Description

210M360

3x M5 x 10mm

210M364

3x M5 x 15mm

210V005

Fan adaptor plate Wallaroo

210V007

HT-coil 2 exits

210V064

Switchbutton (for 2 curves selection)

210V088

Honda fillring

210V171

Rotor adaptor GT250 (+21mm)

210V179

Extension cord (30 cm)

210V184

Ignition mounting kit

210V186

HT-coil 1 exit

210V251

Flywheel puller (M27 | 1mm pitch | left thread)

210V256

Fan (universal / Vespa PX - PK )

210V257

Inertia disc, 280 grams (perfectly centered on flywheel)

210V261

Regulator / Rectifier

210V301

Kill switch

210V309

Spark Plug Cap ‚¬€œ 0ohm (Black)

210V310

Spark Plug Cap ‚¬€œ 5Kohm (Black)

210V311

Spark Plug Cap ‚¬€œ 5Kohm (Red)

210V349

CZ360 mounting adaptor

210V436

Curve switch extension cord (60 cm)

210V438

HT-coil mounting kit

210V439

Rotor filler ring

210V446

Light switch

210V452

stator spacer 5mm

210V467

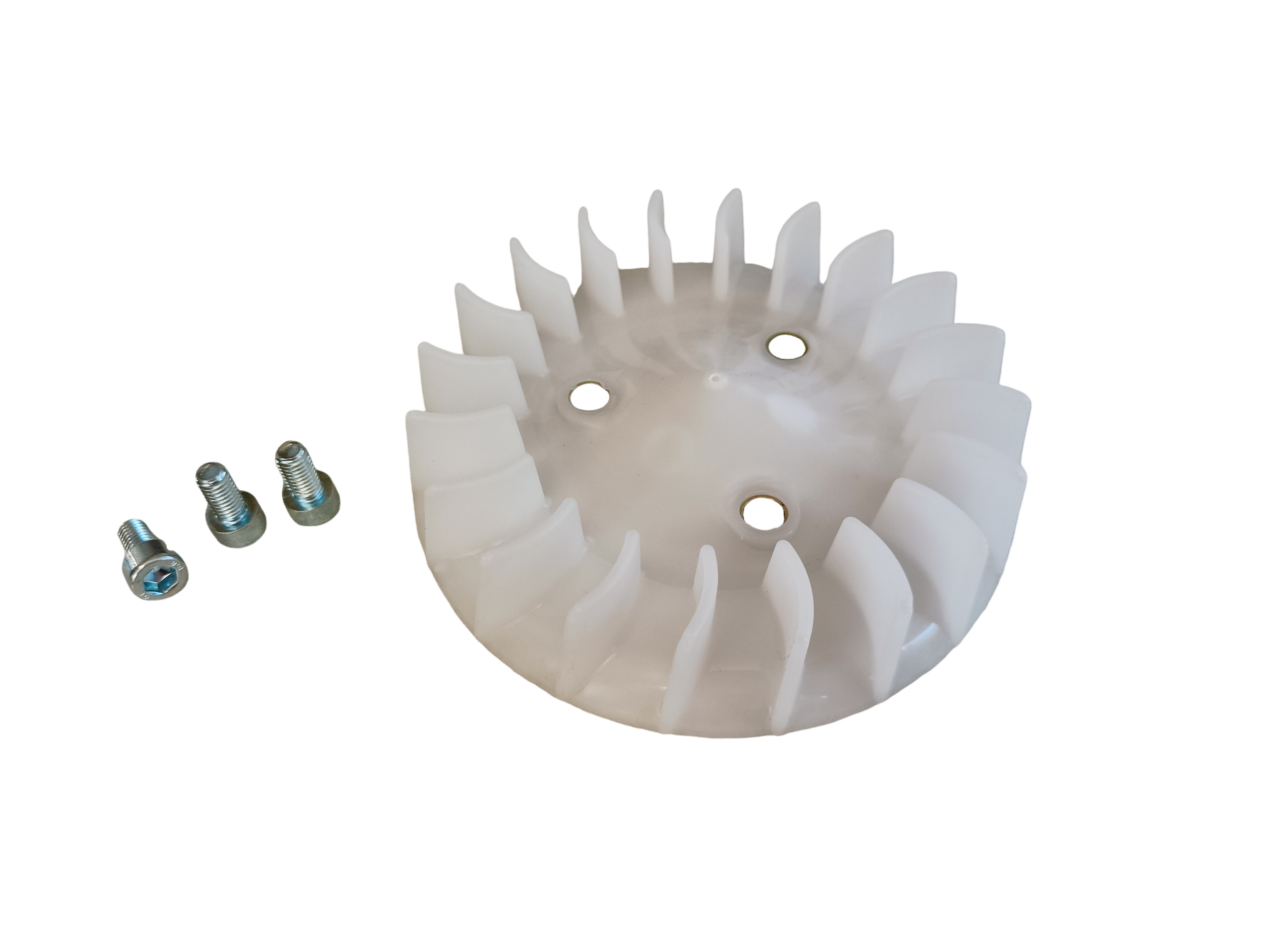

Fan (universal / Piaggo)

210V471

HPI Cooling Fan 2-Ten Kreidler/Zundapp Aluminum cooling fan Outer diameter Ø 116MM Kreidler Forced Cooling Zundapp Forced Cooling (517/02/05)
